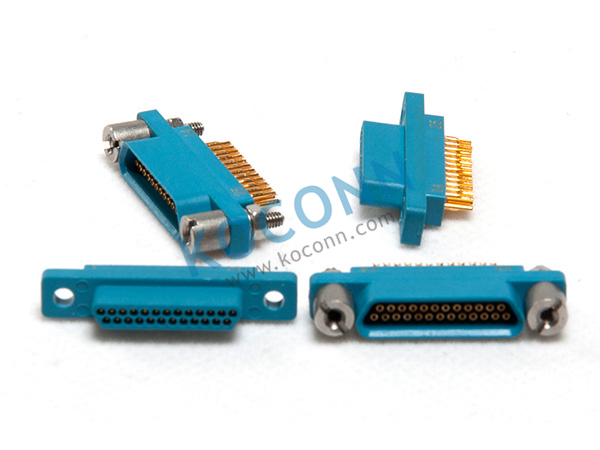

J27 Series Rectangular Electrical Connector

J27 series printed circuit connectors (3 lines) are derived from the J27(2lines).There are 15 specifications in this series: 30, 45, 60, 75, 96, 105, 120, 135, 150, 165, 180, 195, 210, 225, 240 etc. According to the environmental level, this series products classified to common grade, grade I and gradeⅡ. Grade I and gradeⅡ implement the RY3.644.003JT. The common grade implement the Q/450300RYL2301-90

J27- 53 T K L I H
① ② ③ ④ ⑤ ⑥ ⑦
①：J27 series
②：Contact pairs No.9,17,29,41,53,65,72,84,96,110
③：Connector categories: T-plug Z-receptacle
④：Type of contact: J-pin K-socket
⑤：Contact method: X: upright, L: threaded connection , F: relocatable loader, No mark for common install
⑥：Environment level: grade Ⅱ, grade I, No mark for common grade
⑦：Contact terminal style: BC: right-angle, BW: bend angle, BW1: long bend angle,
H: solder connection R: wrapped connection Y: crimp connection Grade Note: Military standard: , Grade Ⅱ:, Grade I:, Common grade:

J27- 9T K L I H

J27- 17 T K L I H

J27- 29 T K L I H

J27- 41 T K L I H

J27- 53 T K L I H
